What is the difference between threaded and welded end connections for Api 5l X42 Steel Pipe?

In the realm of industrial piping, API 5L X42 steel pipe stands as a stalwart, widely utilized for its remarkable balance of strength, durability, and cost - effectiveness. As a leading supplier of API 5L X42 steel pipes, I've encountered numerous inquiries regarding the differences between threaded and welded end connections. This blog post aims to shed light on these two crucial connection methods, helping you make informed decisions for your projects.

Understanding API 5L X42 Steel Pipe

Before delving into the differences between threaded and welded end connections, it's essential to understand the characteristics of API 5L X42 steel pipe. API 5L is a specification that sets the standards for line pipe used in the oil and gas industry. The X42 grade indicates a minimum yield strength of 42,000 psi. This grade of steel pipe is known for its good formability, weldability, and resistance to corrosion, making it suitable for a variety of applications, including transporting oil, gas, and water.

Threaded End Connections

Threaded end connections are a traditional and widely used method for joining API 5L X42 steel pipes. This method involves cutting external threads on one end of the pipe and internal threads on the fitting or another pipe end. The pipes are then screwed together to form a tight seal.

Advantages

• Ease of Installation: One of the primary advantages of threaded end connections is their simplicity of installation. No specialized welding equipment or highly skilled welders are required. With basic tools and a bit of training, workers can quickly assemble the pipes on - site. This makes it a cost - effective option for small - scale projects or situations where time is of the essence.
• Disassembly and Reusability: Threaded connections can be easily disassembled, which is beneficial for maintenance, repairs, or system modifications. If a section of the pipe needs to be replaced, the threaded connection can be unscrewed, and a new pipe can be installed. This also allows for the reuse of pipes and fittings, reducing waste and overall project costs.
• Leak Detection: Threaded connections are relatively easy to inspect for leaks. A simple visual inspection can often reveal if there are any signs of leakage around the threads. Additionally, pressure testing can be conducted to ensure the integrity of the connection.

Disadvantages

• Limited Pressure and Temperature Resistance: Threaded connections have limitations when it comes to handling high pressures and temperatures. The threads can loosen over time due to vibration, thermal expansion and contraction, or high - pressure forces, leading to potential leaks. Therefore, they are typically used in low - to medium - pressure and temperature applications.
• Sealing Challenges: Achieving a perfect seal with threaded connections can be challenging. Even with the use of thread sealants, there is still a risk of leakage, especially in applications where the fluid being transported is highly corrosive or has a high viscosity.
• Size Limitations: Threaded connections are generally more suitable for smaller - diameter pipes. As the pipe diameter increases, it becomes more difficult to cut accurate threads and ensure a proper fit, which can compromise the integrity of the connection.

Welded End Connections

Welded end connections involve fusing two pipe ends together using a welding process. This creates a continuous, seamless joint that is as strong as the pipe itself.

Advantages

• High Strength and Integrity: Welded connections offer superior strength compared to threaded connections. The welded joint can withstand high pressures, temperatures, and mechanical stresses without the risk of loosening. This makes them ideal for high - pressure and high - temperature applications, such as long - distance oil and gas pipelines.
• Leak - Free Operation: When properly welded, the joint forms a completely leak - free seal. This is crucial in applications where the leakage of fluids can have serious environmental or safety consequences. Welded connections eliminate the risk of leakage through threads, providing a reliable and secure solution.
• Suitability for Large - Diameter Pipes: Welding is a preferred method for joining large - diameter API 5L X42 steel pipes. It can handle pipes of various sizes without the limitations associated with threading, ensuring a strong and consistent connection across the entire pipe diameter.

Disadvantages

• Skilled Labor and Equipment Required: Welding requires specialized equipment and highly skilled welders. The welding process must be carefully controlled to ensure the quality of the joint. This means higher labor costs and the need for proper training and certification for the welding personnel.
• Time - Consuming Installation: Welding is a more time - consuming process compared to threading. It involves preparing the pipe ends, setting up the welding equipment, and performing the welding operation. In addition, post - weld inspections and testing are often required to ensure the integrity of the joint, which further adds to the installation time.
• Difficult to Disassemble: Once a welded connection is made, it is difficult to disassemble without damaging the pipes. If a section of the pipe needs to be replaced, the entire welded joint may need to be cut and rewelded, which can be time - consuming and costly.

Choosing the Right Connection Method

The choice between threaded and welded end connections for API 5L X42 steel pipes depends on several factors, including the application requirements, project budget, and installation conditions.

• Application Requirements: For applications where high pressure, high temperature, or a leak - free seal is critical, welded connections are the preferred choice. On the other hand, if the application involves low - pressure systems, small - diameter pipes, or the need for easy disassembly, threaded connections may be more suitable.
• Project Budget: Threaded connections are generally more cost - effective in terms of installation, as they require less equipment and labor. However, if the project requires long - term reliability and can afford the higher upfront costs, welded connections may be a better investment.
• Installation Conditions: If the installation site has limited space or access to power, threaded connections may be easier to install. In contrast, if the pipes are being installed in a controlled environment with access to welding equipment and skilled labor, welded connections can be a more practical option.

Related Products and Suppliers

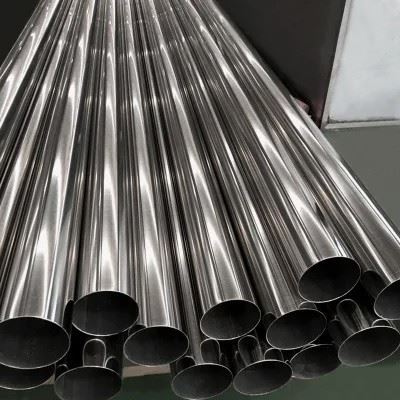

As a supplier of API 5L X42 steel pipes, we also offer a range of related products. If you are interested in other types of seamless carbon steel tubes, you can explore our offerings such as A106 Gr.B Seamless Tube Suppliers, Api 5l X56 Steel Tube, and Tp347 Steel Tube. These products are manufactured to high - quality standards and can be used in various industrial applications.

Contact Us for Procurement

If you are in the market for API 5L X42 steel pipes or any of our related products, we invite you to contact us for procurement discussions. Our team of experts is ready to assist you in selecting the right pipes and connection methods for your specific project requirements. Whether you need advice on installation, product specifications, or pricing, we are here to help.

References

• API Specification 5L, "Specification for Line Pipe", American Petroleum Institute.
• ASME B31.4, "Pipeline Transportation Systems for Liquid Hydrocarbons and Other Liquids", American Society of Mechanical Engineers.
• ASME B31.8, "Gas Transmission and Distribution Piping Systems", American Society of Mechanical Engineers.
