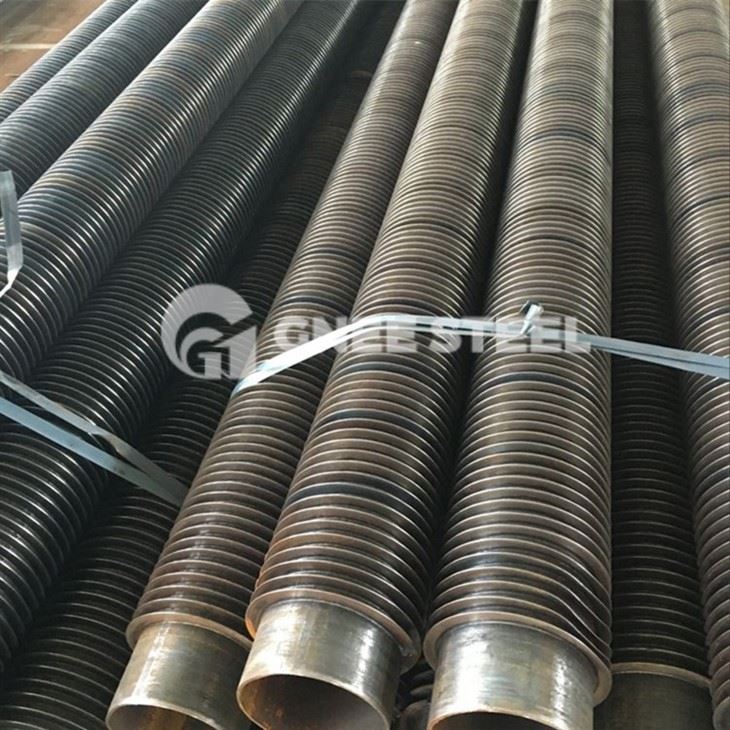

Finned Steel Tube
Fin tube is an efficient heat transfer element with spiral fins. Its heat transfer area is several to dozens of times that of a light tube, which can enhance heat transfer, reduce flow resistance, and reduce metal consumption, thus improving the economy and operational reliability of heat exchange equipment. Fin tubes have been widely used in various boilers.
Gnee Steel (Tianjin) Co., Ltd. is one of the most reliable manufacturers and suppliers of finned steel tube in China, also supports customized service with low price. Welcome to wholesale discount finned steel tube for sale here from our factory. Contact us for free sample.
Fin tubes are made of metal tubes and steel strips welded by equipment. Fin tubes are mainly used in large heat exchangers because they can increase the heat exchange area, which can save more energy.
Maxumum working temperature :270 F (130 C)
Base tube material: stainless steel, carbon steel, copper alloy,alloy steel (No theoretical limit)
ASME SA213/ASTM A213 TP304/304L TP316/TP316L TP321 TP310S TP317,
ASME SA106/ASTM A106 Gr B Gr C,ASME SA179/ASTM A179,ASME SA192/ASTMA192
ASTM B111 C70600 C44300 C68700 C71500...
Fin material: Aluminium,copper. Stainless steel L Type fins tube, carbon steel L Type fins tube copper L Type fins tube
Cu-Ni L fins tube,Aluminium brass L fins tube Copper-nickel L Type fins tube Duplex L Type fins tube super duplex L type fins tube Air cooler fins tube, air preheater fins tube.
Extruded fins tube Serrated fin tubes L Type fins tube G Type fins tube LL Type fins tube H Type fins tube KL Type fins tube HFW fin tube laser welded fin tube.
Advantages of finned tube
Provide 8 to 12 times the heat transfer area of bare tubes.
More efficient than bare tubes.
Provide smaller exchangers due to increased Heat Transfer area.
Often provide a more economical selection.
Fins can be "Cut & Twist" to increase shell side fluid turbulence and improve heat transfer.
Base pipe O.D:15.88-165mm
Fin height:6-50mm
Fin thickness:0.3-0.5mm
Fin pitch: as customer's request.
End:Plain Ends, Beveled Ends
No fin area on both side:As Customer's request.
Specification
|
Type |
Description |
Base tube |
Fin specification (mm) |
||
|
Fin pitch |
Fin height |
Fin thick |
|||
|
Embedded |
G-type fin tube |
16-63 |
2.1-5 |
<17 |
~0.4 |
|
Extruded |
Single metal combined metal |
8-51 |
1.6-10 |
<17 |
0.2-0.4 |
|
Low fin tube t-type fin tube |
10-38 |
0.6-2 |
<1.6 |
~0.3 |
|
|
Bamboo tube corrugated tube |
16-51 |
8-30 |
<2.5 |
/ |
|
|
Wound |
l/kl/ll type fin tube |
16-63 |
2.1-5 |
<17 |
~0.4 |
|
String |
String fin tube |
25-38 |
2.1-3.5 |
<20 |
0.2-0.5 |
|
U-type |
U-type tube |
16-38 |
/ |
/ |
/ |
|
Welding |
HF-welding fin tube |
16-219 |
3-25 |
5-30 |
0.8-3 |
|
H/HH type fin tube |
25-63 |
8-30 |
<200 |
1.5-3.5 |
|
|
Studed fin tube |
25-219 |
8-30 |
5-35 |
φ5-20 |
|
|
Fin material |
N° fins per meter |
Strip thickness |
Production capacity |
|
All type of material |
From 50 to 500 |
From 0,4mm. to 0,5mm. |
More than 500 meters per day |
|
Tube material |
Tube thickness |
O.D. tube |
Lenght available |
|
All type of material |
1,00mm. minimum |
From 10,00mm. to 200,00mm. |
All lenghts up to 8 Meters |
|
Base Tube O.D |
Base Tube Thickness (mm) |
Fin Height (mm) |
Fin Thickness(mm) |
Fin NO.(Pc) |
|
25.4 mm ~152.4 mm |
1.0 mm ~4.0 mm |
5.0 mm ~16.0 mm |
0.89 mm ~1.5 mm |
2 ~ 36 |
|
Base Tube Material |
Fin Material |
Tube Length (Mtr) |
|
|
|
Carbon Steel ,Alloy Steel ,Stainless Steel |
Carbon Steel ,Alloy Steel ,Stainless Steel |
≤ 15Mtrs |
|
Finned Steel Pipe for sale
