ASTM A335 P1 P22 Alloy Steel Pipes
ASTM A335 Grade P1 (ASME SA333 GR. P1) specification pipe is usually a ferritic alloy steel pipe used for high temperature service. This specification belongs to the low alloy steel pipe category. These pipes are manufactured through a seamless production process. ASTM A335 P22 is a "chromium-molybdenum" alloy steel pipe. The addition of chromium makes A335 alloy steel pipe ideal for power plants, refineries, petrochemical plants and oilfield services that transport fluids and gases at high temperatures and pressures.
Gnee Steel (Tianjin) Co., Ltd. is one of the most reliable manufacturers and suppliers of astm a335 p1 p22 alloy steel pipes in China, also supports customized service with low price. Welcome to wholesale discount astm a335 p1 p22 alloy steel pipes for sale here from our factory. Contact us for free sample.
ASTM A335 P1 P22 Alloy Steel Seamless Pipes
A335 P1 P22 Alloy Pipe specification
| Product Name | A335 P1 P22 Alloy Steel Seamless Pipe | |
| Size | OD | 1.0mm-30mm |
| Thickness | 3mm-45mm | |
| Length | SRL,DRL,5.8M,11.8M | |
| Steel Material | ASME SA-335/SA335M A335P1 A335P2 A335P5 A335P5b A335P5c A335P9 A335P11 A335P12 A335P22 A335P91 | |
| Process | Hot rolled/hot expansion/cold drawn/cold rolled | |
| Surface | Wooden Case | |
| Proctor | Plastic cap | |
| Package | Bundles, Bulk | |
| Inspection | With Hydraulic Testing, Ultrasonic testing or X-ray Test | |
| Certificate | ISO9001;2015 | |
| Date of Delivery | Less Than 15 Days According To The Quantity | |
| Payment: | L/C or T/T | |
| Port of Shipment | Tianjin, Shanghai, Ningbo,etc.. | |
ASTM A335 P1 Steel Seamless Pipes Chemical Composition
| Elements | Symbol | Grade P1 (Weight %) |
| Carbon | C | 0.10 – 0.20 |
| Manganese | Mn | 0.30 – 0.80 |
| Phosphorus (max) | P | 0.025 |
| Sulfur (max) | S | 0.025 |
| Silicon | Si | 0.10 – 0.50 |
| Chromium | Cr | Not Required (0.00%) |
| Molybdenum | Mo | 0.44 – 0.65 |
ASTM A335 P1 Alloy Steel Pipes Mechanical Properties
| Property | Imperial (US Customary) | Metric (SI Units) |
| Tensile Strength, min | 55 ksi | 380 MPa |
| Yield Strength, min | 30 ksi | 205 MPa |
| Elongation, min | See detailed table below | See detailed table below |
ASTM A335 P1 alloy pipe Detailed Elongation Requirements
Elongation requirements for ASTM A335 vary based on the orientation of the specimen (Longitudinal or Transverse) and the wall thickness of the pipe.
| Specimen Type | Longitudinal | Transverse |
| Standard Specimen (Thickness ≥ 5/16" [8mm]) | 30% | 20% |
| Thin-Wall Specimen (Thickness < 5/16" [8mm]) | Calculated Deduction* | Calculated Deduction* |
*Note: For thickness below 5/16" (8mm), for each 1/32" (0.8mm) decrease in wall thickness, the elongation decreases by approximately 1.5% from the 30% base. Detailed values must be calculated using the formula specified in the ASTM A335 standard.
ASTM A335 P22 Seamless Pipes Chemical Composition
| C, % | Mn, % | P, % | S, % | Si, % | Cr, % | Mo, % |
| 0.05~0.14 | 0.30~0.60 | ≤0.025 | ≤0.025 | ≤0.50 | 1.90~2.60 | 0.87~1.13 |
ASTM A335 P22 Alloy Steel Pipes Mechanical Properties
| Tensile Strength, MPa | Yield Strength, MPa | Elongation, % |
|---|---|---|
| 415 min | 205 min | 30 min |
ASTM A335 P1 P22 Seamlesss Pipe Description
ASTM A335 P1 P22 Alloy Tube is an iron-alloyed steel made for high-temperature environments with good corrosion resistance in good environments.P22 grades are available in a variety of forms, including round tubes, pipes, and square tubes.P1 P22 grades are a chromium-molybdenum alloy with good corrosion resistance to acidic conditions and environments. It also has high tensile strength at high temperatures.The addition of molybdenum to A335 alloy seamless steel tubes improves the strength and flexibility of the steel, as well as its wear resistance, improving its properties.

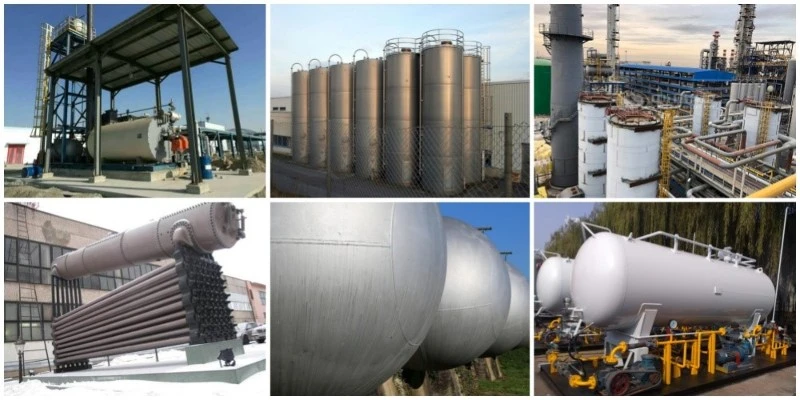

A335 T1 T22 steel pipe is suitable for high-temperature superheaters and reheaters as well as high-temperature header tanks and steam pipes, especially in subcritical and supercritical boilers, where the temperature range is usually below 625°C. It can also be used in nuclear heat exchangers and oil crackers. In addition, it can be used for heat exchangers in nuclear power plants and furnace tubes in oil cracking plants.
GNEE Group, as a leading alloy tube manufacturer and supplier in China, can provide you with A335 alloy boiler tube, A335 high temperature tube, A335 superheater tube, A335 condenser tube, A335 heat exchange tube and so on. If you have an enquiry for A335 alloy pipe, please feel free to contact us.

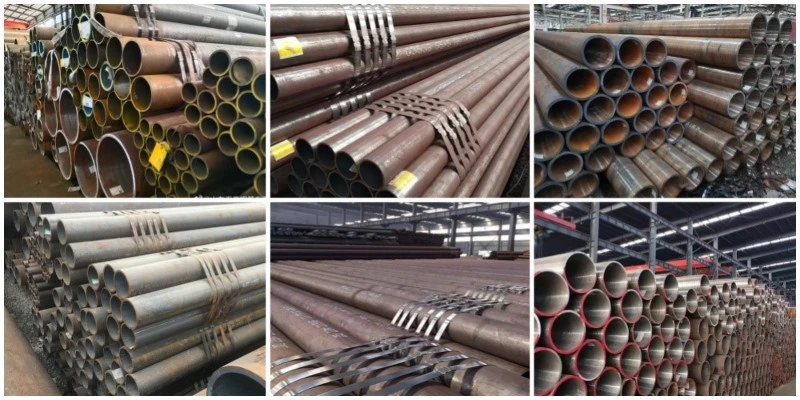

GNEE A335 Alloy Boiler Tube for Sale
Hot Sale Alloy Pipes
A335 P1 Seamless Carbon Steel Pipe
A335 Seamless Alloy Steel Pipe
A335 P2 Seamless Carbon Steel Pipe
About GNEE
GNEE Steel Pipe Group is a comprehensive enterprise integrating steel pipe sales and after-sales service, domestic and international trade. GNEE Steel Pipe Group was founded in 2008 and is located in Anyang, one of the most important steel markets in China.
It has invested 20 million RMB in the renovation of advanced equipment and production lines, including the implementation of ISO9001-2000 quality management system and ISO14001 environmental protection system, meanwhile, it actively develops diversification and forms a production system based on carbon steel and stainless steel as the main products, which covers seamless and welded pipes and tubes.

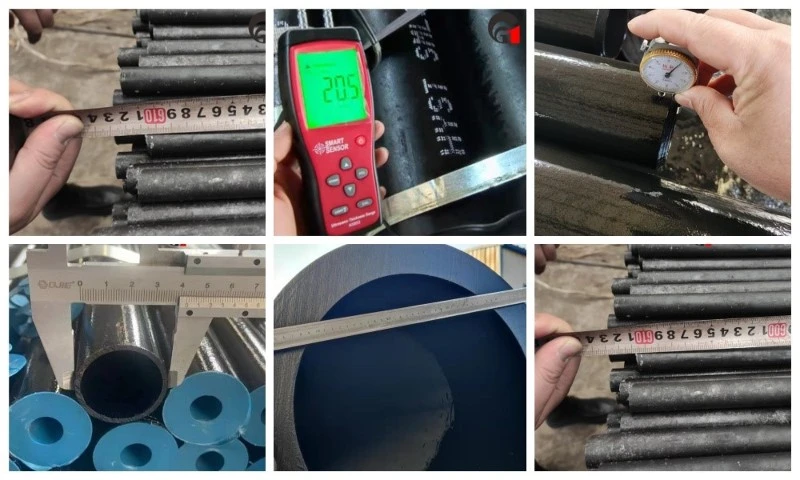

GNEE Pipe Inspection

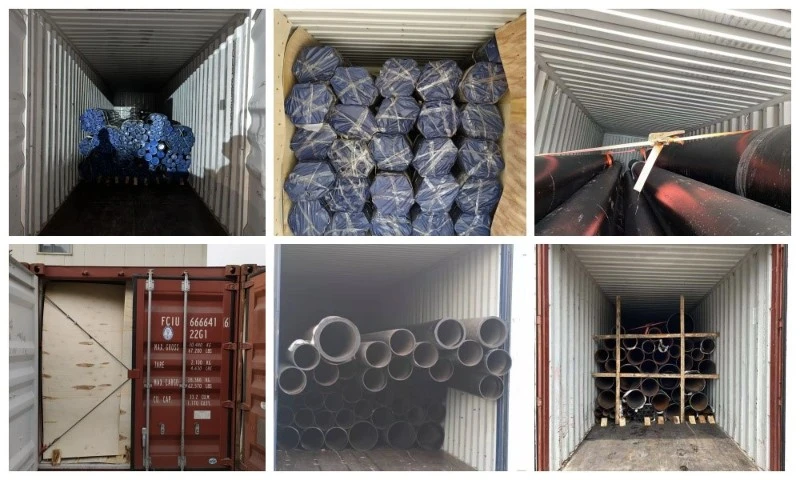

GNEE Pipe Packaging and Shipping
