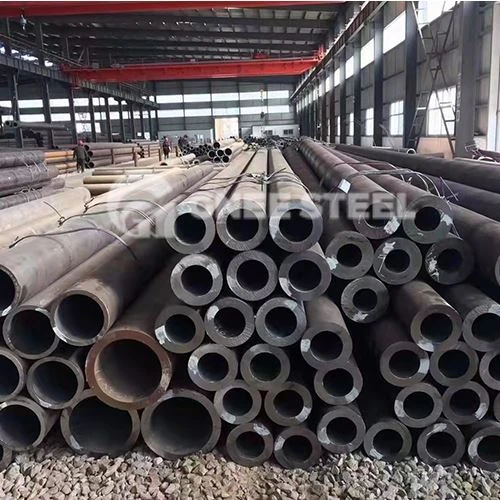

A333 Seamless Carbon Steel Pipe
A333 tubes are mainly used in the manufacture of equipment and piping that operates in extreme low temperature environments, especially in applications where low temperature resistance is required.
Gnee Steel (Tianjin) Co., Ltd. is one of the most reliable manufacturers and suppliers of a333 seamless carbon steel pipe in China, also supports customized service with low price. Welcome to wholesale discount a333 seamless carbon steel pipe for sale here from our factory. Contact us for free sample.
A333/SA333 Pipe Description
A333/AS333 tubes are American Standard seamless and welded tubes for cryogenic applications, covering a wide range of grades such as GR3,GR6,GR8, etc. A333/SA333 tubes are suitable for extreme cryogenic environments ranging from -45°C to -195°C, and are mainly used in the manufacture of cryogenic pressure vessels and piping, as well as cryogenic heat exchangers.
GNEE Group's A333/SA333 steel pipes are exported to more than 160 countries and regions such as the United States, Mexico, Mexico, Kuwait, Colombia, Turkey, Italy, Brazil, France, Saudi Arabia, Kazakhstan, Vietnam, etc., and have become the first choice for power plants, chemical plants, oil plants, etc. GNEE Group insists on producing high-quality and qualified A333/SA333 steel pipes and provides the following services to our customers GNEE Group insists on producing high quality and qualified A333 SA333 steel pipes and providing customers with the most favorable price. Contact us to get the best price for A333 steel pipe.
A333 SA333 Pipe Specification
| Material | A210,T12,T11,P5,P9,P91,T22,A333,4140,5135 etc. |
| Grade | GR3, GR6, GR8, etc. |
| Size | Outer Diameter: Seamless:17-914mm 3/8"-36" |
| Wall Thickness: 2-60mm SCH10 SCH20 SCH30 STD SCH40 SCH60 XS SCH80 | |
| Length: 1-12m as customer requirement | |
| Ends | Plain end/Beveled,protected by plastic caps on both ends, cut quare,grooved,threaded andcoupling,etc. |
| Surface Treatment | Bare,Painting black,varnished,galvanized,anti-corrosion 3PE PP/EP/FBE coating |
| Technical Methods | Hot-rolled/Cold-drawn/Hot-expanded |
| Testing Methods | Pressure test,Flaw detection,Eddy current testing, Hydrostatic testing or Ultrasonicexamination and also with chemical and physical property inspection |
| Third Party Inspection | SGS BV MTC |
| Trade Terms | FOB CIF CFR |
| Payment Terms | FOB 30%T/T,70% before shipment |
| CIF 30% pre-payment and the balance to be paid upon B/L (copy) | |
| or Irrevocable 100% L/C at sight |
ASTM A333 Steel Pipe Mechanical Property:
| Standard | Grade | Tensile Strength (MPa) | Yield Point (MPa) | Elongation (%) | |
|---|---|---|---|---|---|
| Y | X | ||||
| ASTM A333 | Grade 1 | ≥380 | ≥205 | ≥35 | ≥25 |
| Grade 3 | ≥450 | ≥240 | ≥30 | ≥20 | |
| Grade 4 | ≥415 | ≥240 | ≥30 | ≥16.5 | |
| Grade 6 | ≥415 | ≥240 | ≥30 | ≥16.5 | |
| Grade 7 | ≥450 | ≥240 | ≥30 | ≥22 | |
| Grade 8 | ≥690 | ≥515 | ≥22 | ||
| Grade 9 | ≥435 | ≥315 | ≥28 | ||
| Grade 10 | ≥550 | ≥450 | ≥22 | ||
| Grade 11 | ≥450 | ≥240 | ≥18 | ||
ASTM A333 Steel Pipe Strike Temperature Condition:
| Grade | The lowest temperature for strike test | |
|---|---|---|
| °F | °C | |
| ASTM A333 Grade 1 | -50 | -45 |
| ASTM A333 Grade 3 | -150 | -100 |
| ASTM A333 Grade 4 | -150 | -100 |
| ASTM A333 Grade 6 | -50 | -45 |
| ASTM A333 Grade 7 | -100 | -75 |
| ASTM A333 Grade 8 | -320 | -195 |
| ASTM A333 Grade 9 | -100 | -75 |
| ASTM A333 Grade 10 | -75 | -60 |
GNEE A333 SA333 Steel Pipe for sale
GNEE A333 SA333 Seamless Pipe Inspection
GNEE A333 SA333 Steel Pipe Packaging and Shipping
A333/SA333 Low Temperature Carbon Steel Ltcs Pipes exporter
A333/SA333 Low Temperature Boiler Seamless Steel Pipes Customers

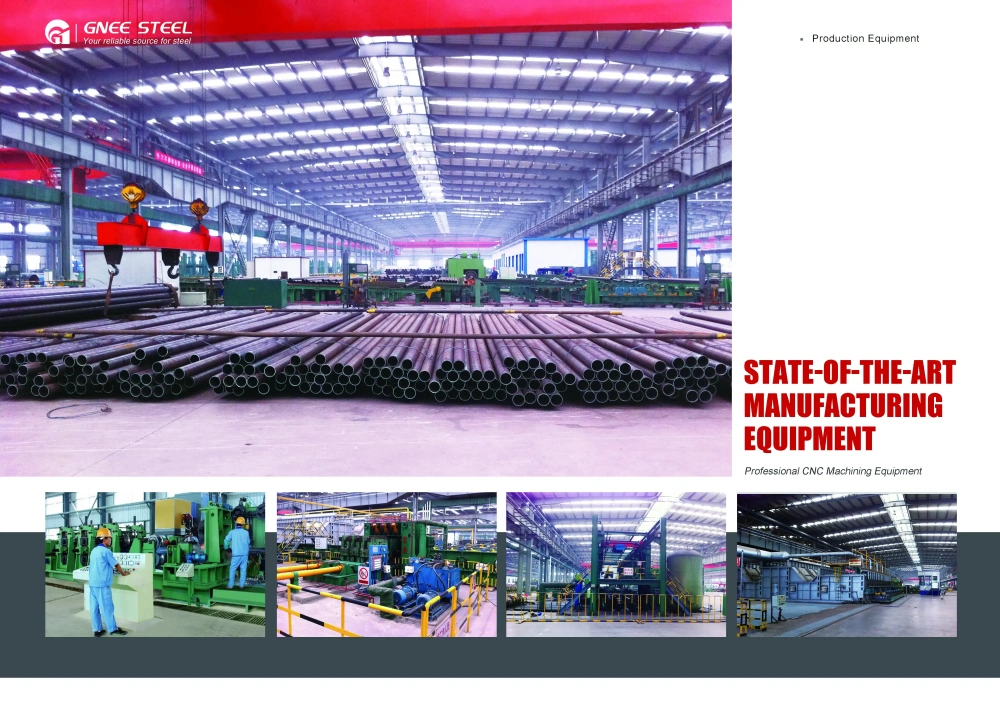

A333/SA333 industrial pipe Factory
A333/SA333 LTCS Pipe Cases
Hot Tags: a333 seamless carbon steel pipe, China a333 seamless carbon steel pipe manufacturers, suppliers, factory, A519 Carbon Mechanical Tubing, pipelines for transporting oil, DIN 28180 Cold Drawn Tubes, carbon steel seamless tubing for plastic injection molding, fluid seamless steel pipe, ASME SA106 High Pressure Boiler Tube
Send Inquiry
