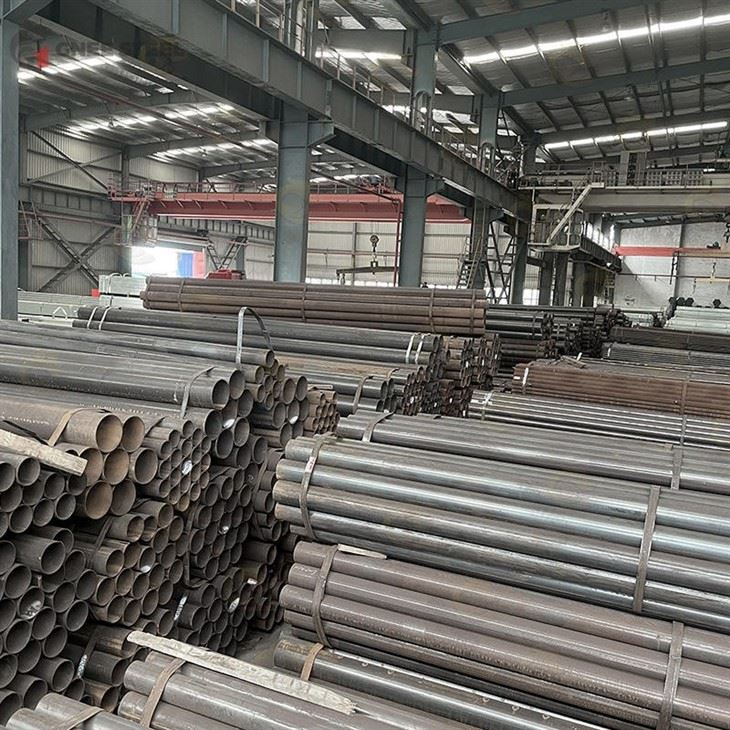

DIN 28180 ASTM A179 Seamless Heater Exchanger Tube
DIN 28180 standard applies to non-alloy steel and alloy steel (including austenitic stainless steel) flat seamless straight tubes mainly used for tube heat exchangers in processing plants.The ASTM A179 standard requires seamless cold-drawn mild steel tubes of minimum wall thickness for tubular heat exchangers, condensers, and similar heat transfer equipment.
Gnee Steel (Tianjin) Co., Ltd. is one of the most reliable manufacturers and suppliers of din 28180 astm a179 seamless heater exchanger tube in China, also supports customized service with low price. Welcome to wholesale discount din 28180 astm a179 seamless heater exchanger tube for sale here from our factory. Contact us for free sample.
DIN 28180 is the dimensional specification for seamless steel tubes for tubular heat exchangers - dimensions and materials. Technical delivery requirement DIN 1629 for seamless round tubes of non-alloy steel with special quality requirements. ASTM A179 Heat Exchanger Tubing is seamless, cold-drawn, mild steel tubing for tubular heat exchangers, condensers, and similar heat transfer equipment.
Sizes : O.D. : 6.0~114.0; W.T. : 1~15; L: max 12000
Diameter : 0.35mm to 6.35mm OD in thickness ranging from 0.1mm to 1.2mm.
Schedule : SCH 40, SCH 80, SCH 160, SCH XS, SCH XXS, All Schedules
Additional Testing : NACE MR0175, NACE TM0177, NACE TM0284, HIC TEST, SSC TEST, H2 SERVICE, IBR, etc.
Length : 5800mm; 6000mm; 6096mm; 7315mm; 11800mm; and so on. Max length: 27000mm, also U bending can be offered.
Wall Thickness : SCH10, SCH20, SCH30, STD, SCH40, SCH60, XS, SCH80, SCH100, SCH120, SCH140, SCH160, XXS DIN, JIS standard thickness
DIN 28180 Cold Drawn Tubes Chemical composition
| C | Si | Mn | P | S | Cr | Ni | |
|---|---|---|---|---|---|---|---|
| min | 0 | 0.1 | 0 | 0 | 0 | 0 | 0 |
| max | 0.17 | 0.35 | 0.8 | 0.04 | 0.04 | 0 | 0 |
| Mo | Cu | Al | V | Ti | Nb | Sn | |
|---|---|---|---|---|---|---|---|
| min | 0.4 | 0 | 0 | 0 | 0 | ||
| max | 0 | 0 | 0 | 0 | 0 | 0 |
DIN 28180 Heat Exchangers Tubes Mechanical properties
| Re (MPa) | Re (ksi) | Rm (MPa) | Rm (ksi) | A (%) | |
|---|---|---|---|---|---|
| min | 235 | 360 | 0 | 25 | |
| max | - | - | 480 | - | - |
DIN 28180 Cold Drawn Heat Exchangers Tubes Sizes:
|
OD,mm |
WT, mm Tubing weight, kg/m |
|||||||
|
1.2 |
1.6 |
2 |
2.6 |
3.2 |
4 |
4.5 |
5 |
|
|
16 |
0,438 |
0,568 |
0,691 |
|||||
|
20 |
0,726 |
0,888 |
1,12 |
|||||
|
25 |
0,923 |
1,13 |
1,44 |
1,72 |
||||
|
30 |
1,12 |
1,38 |
1,76 |
2,11 |
2,56 |
|||
|
38 |
1,78 |
2,27 |
2,75 |
3,35 |
||||
|
50/51 |
2,42 |
3,1 |
3,77 |
4,64 |
5,16 |
5,67 |
||
ASTM A179 Tube Chemical Compositions
| Chemical Components (%) | |||||||
| C | Si | Mn | P | S | Mo | Cr | V |
| 0.06-0.18 | / | 0.27-0.63 | ≤0.035 | ≤0.035 | / | / | / |
ASTM A179 tube Mechanical Properties
| Mechanical Properties | |||
| Tensile
Strength (Mpa) |
Yield
Strength (Mpa) |
Elongation
(%) |
Hardness
(HRB) |
| ≥325 | ≥180 | ≥35 | ≤72 |
ASTM A179/ASME SA179 Tube Wall Thickness Tolerance
| Seamless, Cold-Finished Tubes | ||
| Outside Diameter,
In.(mm) |
Wall thickness Tolerance % | |
| Over (+) | Under (-) | |
| 1 ½ (38.1)
and under |
20 | 0 |
| Over 1½ (38.1) | 22 | 0 |
GNEE Seamless Carbon Steel Pipe
