Steel Pipe 12Cr2Mo
12Cr2Mo is a specific type of steel that belongs to the alloy steel category. It is primarily composed of iron (Fe), chromium (Cr), and molybdenum (Mo). The "12" in its name means about 1.2% chromium content, and "2Mo" means about 2% molybdenum content. This alloy composition gives the steel certain properties that make it suitable for a variety of industrial applications, especially in high-temperature and high-pressure environments.
Gnee Steel (Tianjin) Co., Ltd. is one of the most reliable manufacturers and suppliers of steel pipe 12cr2mo in China, also supports customized service with low price. Welcome to wholesale discount steel pipe 12cr2mo for sale here from our factory. Contact us for free sample.

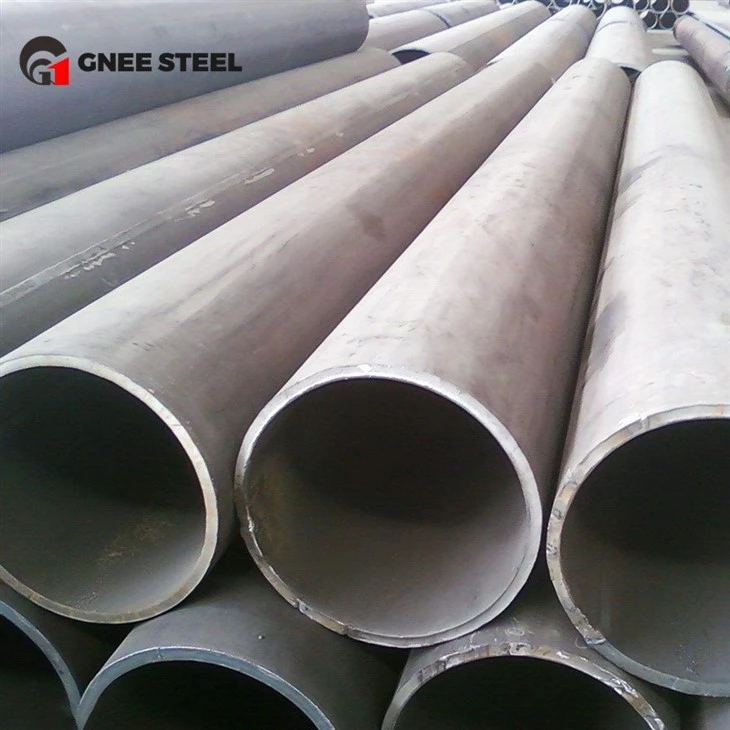

Alloy Steel Pipe 12Cr2Mo
12Cr2Mo Steel Pipe Description
12cr2mo alloy pipe is rolled from a solid tube blank after perforation. 12cr2mo alloy pipe is generally produced on an automatic pipe rolling unit. The solid tube blank is inspected and surface defects are removed, cut into the required length, centered on the perforated end of the tube blank, and then sent to the heating furnace for heating and piercing on the punching machine.
Steel Pipe 12Cr2Mo Specification
|
Product Name |
Steel Pipe 12Cr2Mo in stock |
|
Material |
API 5L,ASTM A106 Gr.B,ASTM A53 Gr.B,ASTM A179/A192,ASTM A513,ASTM A671,ASTM A672,BS EN 10217,BS EN10296,BS EN 39,BS6323,DIN |
|
Outer Diameter |
15mm-1200mm |
|
Wall Thickness |
SCH10,SCH20,SCH30,STD,SCH40,SCH60,SCH80,SCH100,SCH120,SCH160,XS,XXS |
|
Length |
1m,4m,6m,8m,12m according to buyer's request |
|
Surface Treatment |
black paint,varnish,oil,galvanized,anti-corrosion coated |
|
Marking |
Standard marking,or according to your request.Marking Method:Spray white paint |
|
End Treatment |
Plain End/Bevelled End/Grooved End/Threaded End With Plastic Caps |
|
Package |
Loose package;Packaged in bundles(2Ton Max);bundled pipes with slings at the both end for easy loading and discharging;wooden |
|
Test |
Chemical Component Analysis,Mechanical Properties,Technical Properties,Exterior Size Inspection,hydraulic testing,X-ray Test |
|
Application |
Liquid delivery,structure pipe,construction,petroleum cracking,oil pipe,gas pipe |
12Cr2Mo Steel Pipe
12Cr2Mo Alloy Pipe Chemical Requirements:
|
Grade |
Composition,% |
|||||||||
|
12Cr2Mo |
C |
Si |
Mn |
Cr |
Mo |
Ni |
Nb |
Ti |
V |
Cu |
|
0.08-0.15 |
≤0.5 |
0.4-0.6 |
2.0-2.5 |
0.9-1.13 |
≤0.30 |
- |
- |
- |
≤0.20 |
|
12Cr2Mo Alloy Tube Mechanical property:
|
Grade |
Tensile Strength, [MPa] |
Yield Strength, min [MPa] |
Elongation min,% |
|
12Cr2Mo |
450-600 |
280 |
22 |
Heat treatment:
S<30 mm: Normalization("N") and tempering("T")
"N" temperature 900℃-960 °C, "T" temperature 700℃-750 °C;
S>30 mm: Quenching("Q") and tempering("T") or normalizing("N") and tempering("T")
"Q" temperature is not less than 900 °C, "T" temperature 700 °C'-750 °C;
"N" temperature 900℃-960°C, "T"temperature 700℃-750°C, but "Q" should be performed after "N".
