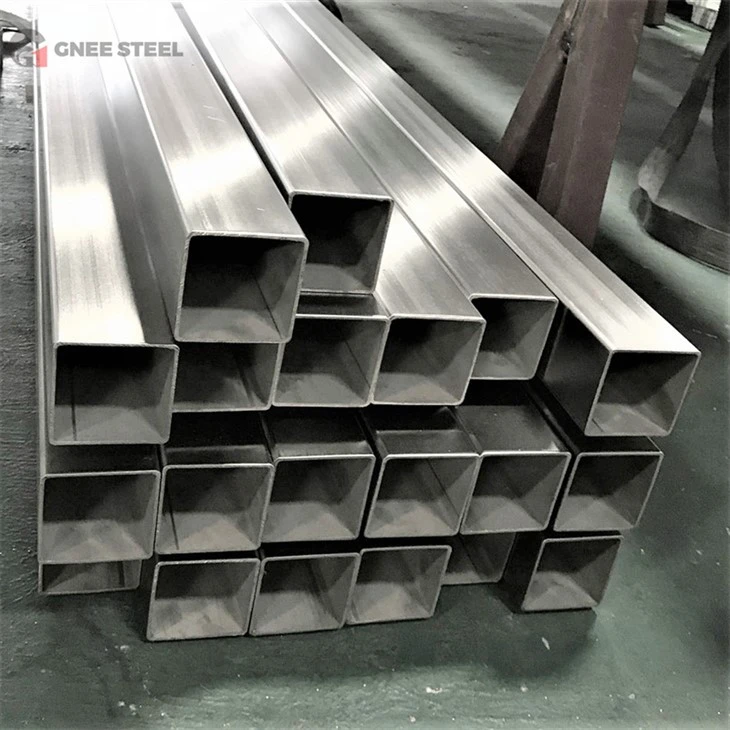

347H Seamless Steel Square Tube
Austenitic stainless steel 347h is an austenitic stainless steel with excellent corrosion resistance, welding performance, and thermal strength properties. It has high high-temperature strength and high-temperature plasticity, and its organizational stability is also very tight.
Gnee Steel (Tianjin) Co., Ltd. is one of the most reliable manufacturers and suppliers of 347h seamless steel square tube in China, also supports customized service with low price. Welcome to wholesale discount 347h seamless steel square tube for sale here from our factory. Contact us for free sample.
347H Seamless Steel Tube
347H Seamless Square Steel Tube
347H (S34709) is a high-carbon niobium-containing Cr-Ni austenitic stainless steel. Because it contains the stabilizing element Nb, it has good resistance to intergranular corrosion and polysulfate intergranular stress corrosion resistance. It can be used in corrosive media such as acids, alkalis, and salts. Its corrosion resistance is similar to that of Ti-containing 18-8 austenitic stainless steel, so it is widely used in boilers, power generation, petroleum, chemicals, synthetic fibers, food, paper, and other industries. Used in large boiler superheater tubes, reheater tubes, steam pipes, and heat exchangers in the petrochemical industry.
Products Description
|
Product Name
|
347H Square Seamless Steel Tube |
|
Standard
|
ASTM A213,A312,ASTM A269,ASTM A778,ASTM A789
|
|
Material
|
|
|
Surface
|
BA/2B/NO.1/NO.3/NO.4/8K/HL/2D/1D
|
|
Size
|
Wall thickness:1mm-150mm(SCH10-XXS)Outer diameter:4mm*4mm-800mm*800mm,Customized size
|
|
Out- Diameter
|
Seamless Pipe: 6mm-530mm
Welded Pipe: 8mm-3000mm |
|
Thickness
|
Seamless Pipe: 1.0mm - 40mm
Welded Pipe: 0.5mm-45mm |
|
Application
|
Widely used in petroleum, foodstuff, chemical industry, construction, electric
power, nuclear, energy, machinery, biotechnology, shipbuilding, and boiler fields. |
|
Packaging
|
Standard export packing, Bundle, or with all kinds of colors PVC or as your requirements
|
|
Advantage
|
1. Reasonable price with excellent quality.
2. Abundant stock and prompt delivery.
3. Rich supply and export experience, sincere service. |
347H Seamless Steel Pipe
Chemical Composition Of 347/347h seamless ss pipe
| Element | C | Cr | Mn | Ni | P | S | Si | Cb/Ta |
|---|---|---|---|---|---|---|---|---|
| 347 | 0.08 max | min: 17.0 max: 20.0 |
2.0 max | min: 9.0 max: 13.0 |
0.04 max | 0.30 max |
0.75 max |
min:10x C max: 1.0 |
| 347H | min: 0.04 max: 0.10 |
min: 17.0 max: 20.0 |
2.0 max | min: 9.0 max: 13.0 |
0.03 max | 0.30 max |
0.75 max |
min:10x C max: 1.0 |
Mechanical Properties Of 347/347h sanitary stainless steel tubing
| Grade | Tensile Strength ksi (MPa) min | Yield Strength 0.2% ksi offset ksi (MPa) min | Elongation (% in 50mm) min | Hardness (Brinell) MAX | Hardness (Rockwell B) MAX |
|---|---|---|---|---|---|
| 347/347H | 75 (515) |
30 (205) |
40 | 201 | 95 |
Physical Properties Of 347/347h ss square tube
| Density lbm/in3 |
Coefficient of Thermal Expansion (min/in)-°F |
Thermal Conductivity BTU/hr-ft-°F | Specific Heat BTU/lbm -°F | Modules of Elasticity (annealed)2-psi | |
|---|---|---|---|---|---|
| at 68 °F | at 68 – 212°F | at 68 – 1832°F | 68-932°F | at 32 – 212°F | in tension (E) |
| 0.288 | 9.2 | 11.4 | 14.7 | 0.12 | 28 x 106 |
After-Sales Services
Replacement or repair: Depending on the severity of the quality problem, we may offer replacement or repair options for the affected 321 seamless steel square pipe. Our goal is to ensure that products meet the required standards and specifications.
Timely response: We understand the importance of timely resolution of quality issues. Our customer service team is committed to responding to your queries and concerns on time, ensuring you get the help you need, when you need it.
Feedback and improvement: Customer feedback is very valuable to us. If a quality issue arises, we take it seriously and use the feedback to improve our products and processes. Your comments help us to improve the overall quality and performance of our products.
Company Certification
Company Customer
Steel tubing inspection
Large stainless steel pipe packaging and shipping
