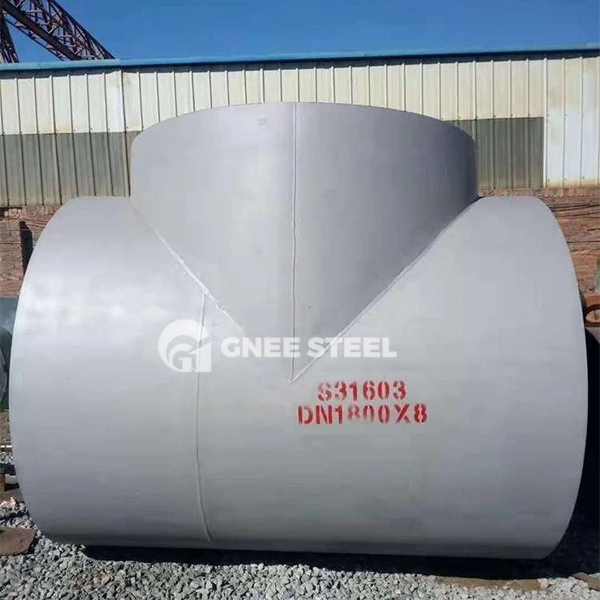

Equal Tee
Equal Tee is a tee fitting with the same diameter for the main pipe and branch pipe, and is used for flow diversion or confluence in a piping system.
Gnee Steel (Tianjin) Co., Ltd. is one of the most reliable manufacturers and suppliers of equal tee in China, also supports customized service with low price. Welcome to wholesale discount equal tee for sale here from our factory. Contact us for free sample.
Equal Tee Description
Equal Tee is a kind of tee fittings with three connection ports of the same calibre, mainly used for standardized connection at the branch of pipeline. According to the connection form can be divided into butt-welding type, socket type, threaded type and other types, the material covers carbon steel, stainless steel, alloy steel, etc., the manufacturing process includes hydraulic expansion, hot press forming, cold drawing, etc., the implementation of the national standard, the U.S. standard and other national standards. Equal diameter tee is widely used in petrochemical, oil and gas, liquefied gas, fertiliser, power plant, nuclear power, shipbuilding, paper, pharmaceutical, food hygiene, urban construction and other industries engineering construction and overhaul. The pressure requirement of this kind of fittings in industry is high, the maximum pressure can reach 600kg, and the pressure of water pipe in life is low, usually 16kg.
Equal Tee specification
| Product | Equal Tee; Equal Cross |
| Technology | Seamless;Welded |
| Size | Seamless Size：DN15-DN1200 Welded Size：DN200-DN2000 |
| Thickness | SCH10;SCH20;SCH30;STD;SCH40;SCH60;SCH80;SCH100;SCH120;SCH160;XS;XXS;High Thickness To 150mm |
| Radius | 1D ;1.5D; 2D; 2.5D; 3D; 4D; 5D; 6D;10D |
| Material | A234-WPB;A420-WPL3/ WPL6;WP5;WP9;WP11;WP22;NACE MR-0175 API5L-X42/46/52/56/60/65/70/80(NS/MS) 403-WP304/L;WP316/L;S31803; 2205 |
| Standard | ASME B16.9; GB12459; DIN2615; GOST17375; JIS B2311 |
| Coating | Anti corrosive paint; 3LPE Coating; Galvanized (Hot Dipped Electro-Plating) etc. |
| Inspection | Chemical Elements; Mechanical Property; Metallographic Test,; HIC /SSC,; Heat Treatment,; Ultrasonic Test; Penetration Test; Magnetic Powder Test; X-Ray Test; Hydraulic Pressure Test; Blasting Experiment; we can make them according to your request. |
| Application | Water Disposal; Electric Power; Chemical Engineering; Ship Building; Nuclear Energy; Garbage Disposal; Natural Gas; Petroleum Oil. |

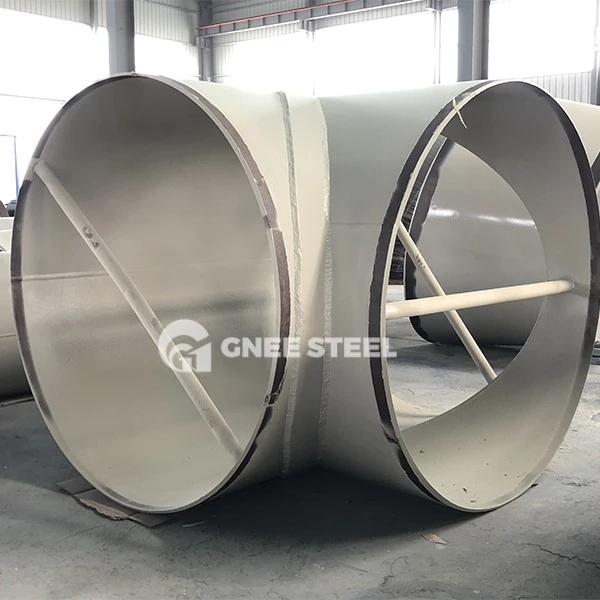

Equal Tee in stock
Advantages
- Low fluid resistance: The equal-diameter design avoids turbulence caused by variable diameter and reduces pressure loss.
- Reliable sealing: Welding/pressing connection ensures no leakage under high pressure conditions (stainless steel double press pressure ≥ 2.5MPa).
- Strong durability: The metal material is corrosion-resistant and high-temperature resistant, with a service life of more than 20 years.
- Easy maintenance: The one-piece structure has no dead corners and is not easy to scale and breed bacteria.
