ASTM A358 TP304 Cl1 Pipe Dimension
ASTM A358 TP304 Cl1 Pipe is a premium quality stainless steel pipe with excellent corrosion resistance, high temperature strength and durability. Its composition, manufacturing process and post-weld heat treatment all contribute to its exceptional properties, making it suitable for a wide range of applications. If you need stainless steel pipe for harsh environment, ASTM A358 TP304 Cl1 pipe is your best choice.
Gnee Steel (Tianjin) Co., Ltd. is one of the most reliable manufacturers and suppliers of astm a358 tp304 cl1 pipe dimension in China, also supports customized service with low price. Welcome to wholesale discount astm a358 tp304 cl1 pipe dimension for sale here from our factory. Contact us for free sample.

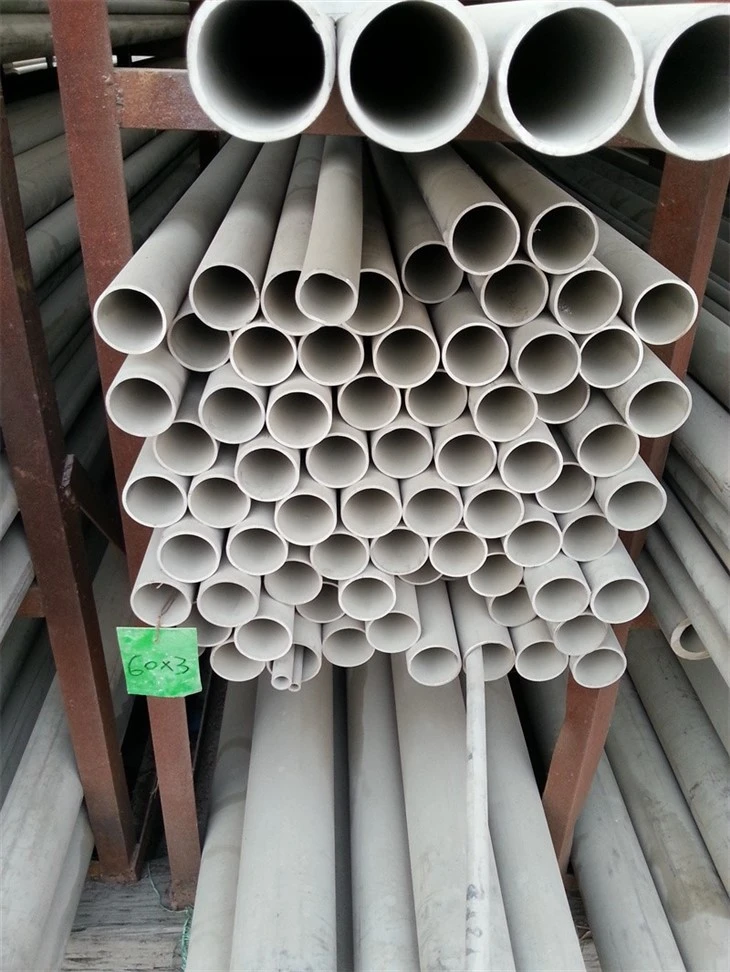

ASTM A358 TP304 Cl1 SS Welded Pipe
Products Description
TP 304 CL.1 EFW pipe is characterized by high temperature resistance. These pipes are ideal for applications with temperatures ranging from 800 to 1500 degrees Fahrenheit, such as heat exchangers and boilers. They are also known for their excellent corrosion resistance and high stress cracking resistance. TP 304CL.1 EFW pipe has excellent weldability, making it easy to join with other pipes and fittings.
STAINLESS STEEL 304, 304L, 304H CLASS 1 EFW PIPES CHEMICAL COMPOSITION
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni |
| SS 304 | 0.08 max | 2 max | 0.75 max | 0.045 max | 0.030 max | 18 – 20 | - | 8 – 11 |
| SS 304L | 0.035 max | 2.0 max | 1.0 max | 0.045 max | 0.03 max | 18 – 20 | - | 8 – 13 |
| SS 304H | 0.10 max | 2.0 max | 0.75 max | 0.045 max | 0.03 max | 18 – 20 | - | 8 – 10.5 |
MECHANICAL PROPERTIES OF STAINLESS STEEL TP304 / 304L / 304H CLASS 1 EFW PIPES
| Grade | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| SS 304/304L/304H | 8.0 g/cm3 | 1400 °C (2550 °F) | Psi – 75000, MPa – 515 | Psi – 30000, MPa – 205 | 40 % |
| ASTM A358 TP304 Cl1 SS Pipe |
