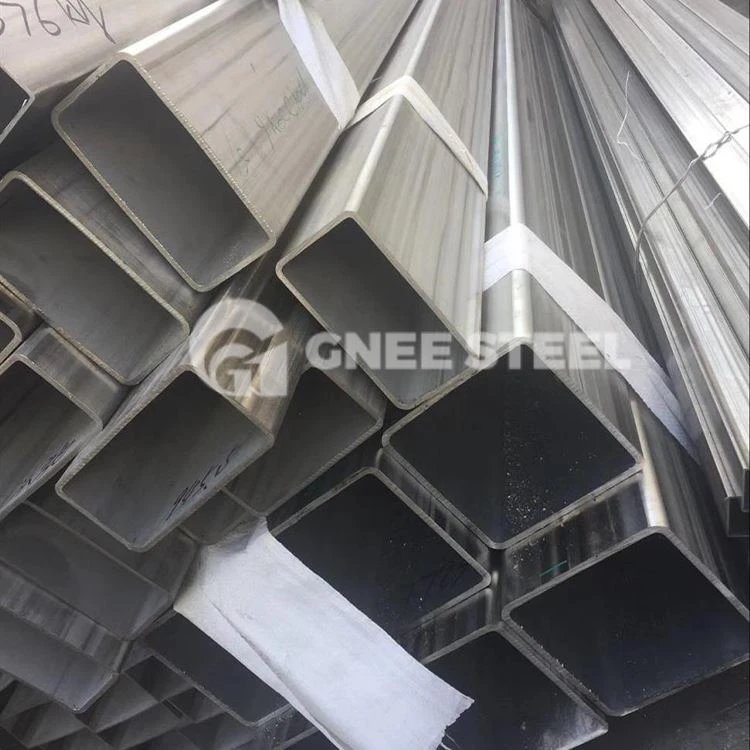

ASTM A312 TP 410 Welded Pipe
A312 TP410 is a representative steel of martensitic steel. Although it has high strength, it is not suitable for use in harsh corrosive environments. It has good processability and is hardened by heat treatment (magnetic).
Gnee Steel (Tianjin) Co., Ltd. is one of the most reliable manufacturers and suppliers of astm a312 tp 410 welded pipe in China, also supports customized service with low price. Welcome to wholesale discount astm a312 tp 410 welded pipe for sale here from our factory. Contact us for free sample.
A312 TP410 Stainless Steel Pipe Description
A312 410 steel pipe, also known as SUS410 stainless steel, is a nickel-free martensitic stainless steel with the following characteristics and uses:
Chemical composition and physical properties:
The carbon content is about 0.15% and the chromium content is about 13%, which makes 410 steel pipe has high hardness, toughness and corrosion resistance.
High thermal conductivity, low expansion coefficient, with the advantages of oxidation and stress corrosion resistance.
Application Areas:
Widely used in the manufacture of parts resistant to corrosion by atmosphere, water vapour, water and oxidising acids.
Particularly suitable for the manufacture of parts requiring high toughness and subject to shock loads, such as turbine blades, hydraulic press valves, structural frames, bolts and nuts.
GNEE Group is a well-known steel pipe manufacturer and exporter, our stainless steel pipes have been sold to more than 160 countries and regions around the world, with an annual export volume of 500,000 tonnes.GNEE Group insists on providing our customers with high quality steel pipes and preferential price, contact us to get the best 410 Stainless Steel Pipes and Price List.
ASTM A312 TP410 Stainless Steel Pipe Specification
| Spec Chart | ASTM A312 / ASTM SA312 |
| ASME Specification | ANSI/ASME B36.19M, ANSI/ASME B36.10M |
| Manufacturing Pipe Forms | Round, Square, Hydraulic, Hex, Rectangle, Honed,etc. |
| Types | Welded, ERW, LSAW,etc. |
| Pipe End Type Abbreviations | Beveled One End, Treaded Both Ends, Plain One End, Plain Both Ends, Bevel both ends, Bevel one end, Treaded On End, Beveled end, Bevel small end, Bevel large end |
|
Delivery Conditions |
Bright Annealed, Cold Drawn, Polished, Annealed and Pickled |
| Surface Finish | 2B, No.4, No.1, No.8 Mirror Finish or custom Finish as per customer Requirements |
| Schedule Designations | SCH 5, SCH10, SCH 40, SCH 80, SCH 80S, SCH 160, SCH XXS, SCH XS |
| Also offer | Polishing, Grooving, Customer Tagging/ Marking, Beveling, Material testing, MTR Available, Ultrasonic Testing, Destructive, Cutting, Color Coding, Threading, Threading, Export Packaging, Non-Export Documentation, Destructive, Machining |
Equivalent Grades of 410 Stainless Steel Pipes And Tubes
| STANDARD | UNS | WNR. | EN | JIS |
|---|---|---|---|---|
| SS 410 | S41000 | 1.4006 | X12Cr13 | SUS 410 |
410 Stainless Steel Tube Chemical Composition
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N | |
|---|---|---|---|---|---|---|---|---|---|---|
| 410 | min. | – | – | – | – | – | 11.5 | – | – | – |
| max. | 0.15 | 1.0 | 1.00 | 0.040 | 0.030 | 13.5 | – | 0.75 | – | |
ASTM A312 TP410 Welded Pipe Mechanical Properties
| Grade | Tensile Strength (MPa) min | Yield Strength 0.2% Proof (MPa) min | Elongation (% in 50mm) min | Hardness | |
|---|---|---|---|---|---|
| Rockwell B (HR B) max | Brinell (HB) max | ||||
| 410 | 480 | 275 | 16 | 95 | 201 |
ASTM A312 TP410 Pipe Physical Properties
| Grade | Density (kg/m3) | Elastic Modulus (GPa) | Mean Coefficient of Thermal Expansion (m/m/0C) | Thermal Conductivity (W/m.K) | Specific Heat 0-1000C (J/kg.K) | Electrical Resistivity (n.m) | |||
|---|---|---|---|---|---|---|---|---|---|
| 0-1000C | 0-3150C | 0-5380C | at 1000C | at 5000C | |||||
| 410 | 7750 | 200 | 9.9 | 11.4 | 11.6 | 24.9 | 28.7 | 460 | 570 |

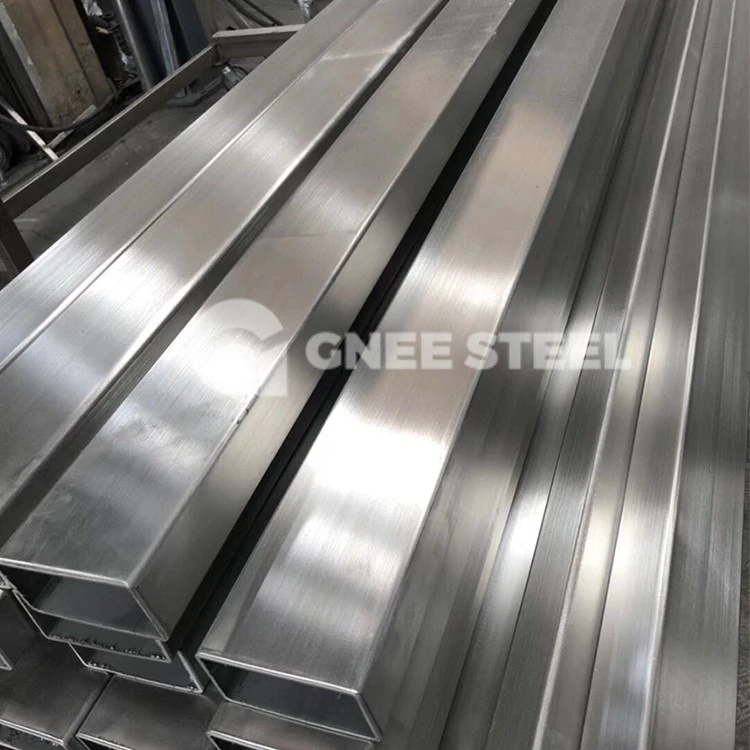

A312 410 SS Welded Pipe
About GNEE
GNEE Group designs our Stainless Steel 410 Seamless Steel Pipes with utmost sincerity and hard work and our suppliers adhere to international standards. Our experienced and professional experts contribute immensely to manufacturing quality steel pipes. They use the best quality raw materials to manufacture our steel pipes. Additionally, we use the latest machines and equipment for manufacturing steel pipes.
GNEE Group believes in equal emphasis on quality and quantity, so our quality control team conducts in-depth primary and secondary testing to ensure the superior quality of stainless steel 410 seamless steel pipes. These steel pipes are packed in high-quality packaging materials so they will not rust or get damaged. We deliver steel pipes on time. You can contact us at any time if necessary.
GNEE Customers
GNEE Exhibition
Pipe Inspection
Packaging and Shipping
