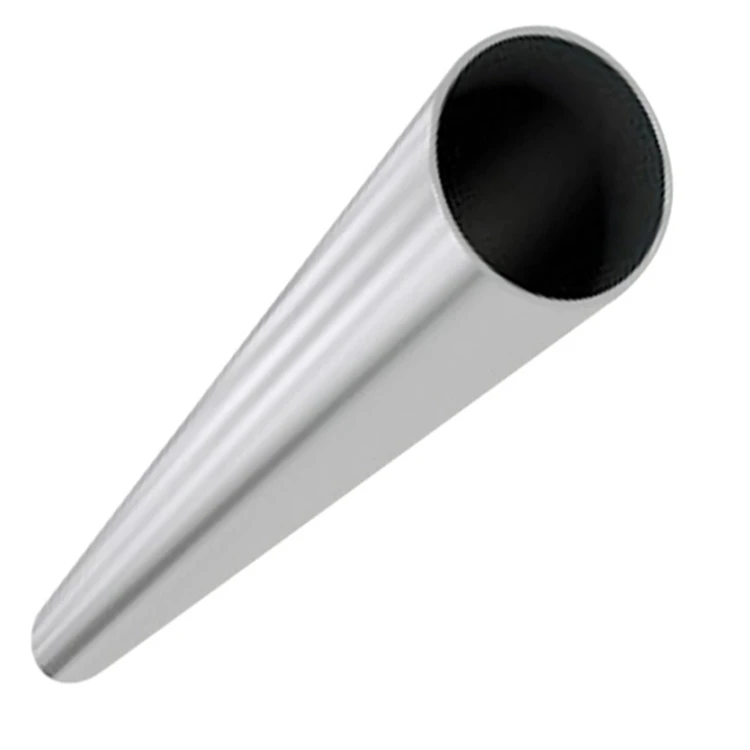

ASTM A213 Stainless Steel Seamless Tube
ASTM A213 pipe is widely used in high temperature equipment, especially boilers and superheaters. Pipes can be made from alloy steel and stainless steel and are made seamlessly by hot rolling or cold drawing.
Gnee Steel (Tianjin) Co., Ltd. is one of the most reliable manufacturers and suppliers of astm a213 stainless steel seamless tube in China, also supports customized service with low price. Welcome to wholesale discount astm a213 stainless steel seamless tube for sale here from our factory. Contact us for free sample.
Stainless Steel Seamless Pipe Supplier-GNEE
ASTM A213 Stainless Steel Tube
ASTM A213 grades cover austenitic and seamless boilers, heat exchangers and superheated vessels. ASTM A213 pipe has excellent strength and excellent corrosion resistance and is not prone to deformation under extreme conditions. This grade of ASTM A213 stainless steel pipe is typically specified in a size of 3.2 mm, with an inside diameter of 127 mm and an outside diameter ranging from 0.4 mm to 12.7 mm. Generally divided into T5, T9, T11, T12, T22, and T91 types. These pipes can be processed in hot or cold rolling to give them the desired properties. These features enable them to be used in a wide range of industries.
| Type: | Stainless Steel Pipes |
|---|---|
| Standard: | ASTM, AISI, GB, JIS, DIN, EN |
| Grade: | 300 Series |
| Certification: | ISO, AISI, ASTM, GB, EN, DIN, JIS |
| Shape: | Round |
Chemical Composition Of ASTM A213 Stainless Steel Tubes
| Steel Grades | ASTM A213 Chemical Composition % Max | ||||||||||
| C | Mn | P | S | Si | Cr | Ni | Mo | NB | Nb | Ti | |
| TP304 | 0.08 | 2.00 | 0.045 | 0.030 | 0.75 | 18.0-20.0 | 8.0-11.0 | … | … | … | … |
| TP304H | 0.04-0.10 | 2.00 | 0.040 | 0.030 | 0.75 | 18.0-20.0 | 8.0-11.0 | … | … | … | … |
| TP304L | 0.035 | 2.00 | 0.040 | 0.030 | 0.75 | 18.0-20.0 | 8.0-13.0 | … | … | … | … |
| TP310S | 0.08 | 2.00 | 0.045 | 0.030 | 0.75 | 24.0-26.0 | 19.0-22.0 | 0.75 | … | … | … |
| TP310HCbN | 0.04-0.10 | 2.00 | 0.030 | 0.030 | 0.75 | 24.0-26.0 | 17.0-23.0 | … | 0.15-0.35 | 0.20-0.60 | … |
| TP316 | 0.08 | 2.00 | 0.040 | 0.030 | 0.75 | 16.0-18.0 | 11.0-14.0 | 2.00-3.00 | … | … | … |
| TP316L | 0.035 | 2.00 | 0.040 | 0.030 | 1.00 | 16.0-18.0 | 10.0-15.0 | 2.00-3.00 | … | … | … |
| TP316H | 0.04-0.10 | 2.00 | 0.040 | 0.030 | 0.75 | 16.0-18.0 | 11.0-14.0 | 2.00-3.00 | … | … | … |
| TP321 | 0.08 | 2.00 | 0.040 | 0.030 | 0.75 | 17.0-20.0 | 9.0-13.0 | … | … | … | 5C-0.60 |
| TP321H | 0.04-0.10 | 2.00 | 0.040 | 0.030 | 0.75 | 17.0-20.0 | 9.0-13.0 | … | … | … | 4C-0.60 |
| TP347 | 0.08 | 2.00 | 0.040 | 0.030 | 0.75 | 17.0-19.0 | 9.0-13.0 | … | … | 10xC-1.00 | … |
| TP347H | 0.04-0.10 | 2.00 | 0.040 | 0.030 | 0.75 | 17.0-20.0 | 9.0-13.0 | … | … | 8xC-1.00 | … |
ASTM A213 Stainless Steel Tubes Outside Diameter and Wall Thickness Tolerance
| OD, mm | OD Tolerance |
|---|---|
| < 25.4 | +/- 0.10 |
| 25.4 – <= 38.1 | +/- 0.15 |
| > 38.1 -< 50.8 | +/- 0.20 |
| 50.8 -< 63.5 | +/- 0.25 |
| 63.5 -< 76.2 | +/- 0.30 |
| 76.2 – <= 101.6 | +/- 0.38 |
| > 101.6 – <= 190.5 | +0.38/-0.64 |
| > 190.5 – <= 228.6 | +0.38/-1.14 |
| OD, mm | WT Tolerance |
|---|---|
| <= 38.1 | +20%/-0 |
| > 38.1 | +22%/-0 |
A213 Stainless Steel Pipe
FAQ：
Q: Are you a manufacturer?
A: Yes, we are a manufacturer, we have our own factory. GNEE Group is China's leading manufacturer of seamless stainless steel, seamless carbon steel pipes, alloy steel pipes, oil casing, spiral welded pipes, and submerged arc welded pipes. We promise that we are exactly the supplier you have been looking for.
Q:Can we visit your factory ?
A:Yes, of course, we welcome you to visit our factory to check our production lines and know more about our capacity, quality.
Q: Do you have quality control system?
A: Yes, we have ISO, BV, SGS certifications and our own quality control laboratory.
Q: Can you arrange the shipment for us?
A: Yes, we have designated sea and rail freight forwarders with decades of experience, and we can get the best prices with the earliest ships and professional services.
