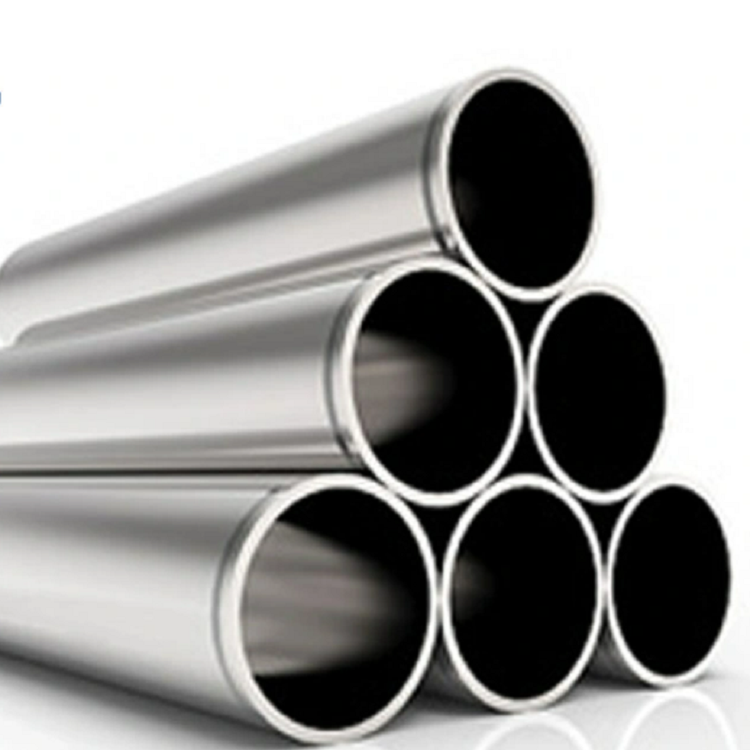

Stainless Steel Seamless Pipe Tp316L
Stainless steel seamless pipe Tp316L is a high-quality and reliable product that is widely used in various applications. It is a type of pipe that is made of stainless steel alloy and has excellent corrosion resistance and heat resistance properties. The seamless design of this pipe ensures that there are no welds or joints that could compromise its strength or structure.
TP316L is American standard 316L stainless steel. TP is American standard, 316L is a stainless steel model, 316 is a highly corrosion-resistant model, L means low carbon, 316L type has better resistance to grain boundaries based on type 316, and is used in highly corrosive media.
| Material | Stainless Steel Seamless Pipe | |
| Steel Grade | 200 Series: 201,202 300 Series: 301,304,304L,304H,316,316L,316Ti,317L,321,309s,310s 400 Series: 403,405,409L,410,416,420,431, 434 Duplex Steel: 904L,2205,2507,2101,2520,2304 |
|
| Thickness |
|
|
| Length | 6m,9m,12m (as required) | |
| Surface | ickling,Polished,Bright,Hairline | |
| Technique |
|
Chemical Composition
| SS | 316L |
|---|---|
| Ni | 10 – 14 |
| N | 0.10 max |
| Cr | 16 – 18 |
| C | 0.08 max |
| Si | 0.75 max |
| Mn | 2 max |
| P | 0.045 max |
| S | 0.030 max |
| M | 2.00 – 3.00 |
Mechanical Properties
| Grade | 316L |
| Tensile Strength (MPa) min | 485 |
| Yield Strength 0.2% Proof (MPa) min | 170 |
| Elongation (% in 50mm) min | 40 |
| Hardness | |
| Rockwell B (HR B) max | 95 |
| Brinell (HB) max | 217 |
FAQ:
Q1: Can I get some samples?
A: Sure, we can send some samples to you to check.
Q2: Can you make the product with my design?
A: Yes, we can. We supply customized service. You can send us all the details of what you need, then we will provide detailed quotation.
Q3: How about the quality control?
A: We will send certificate for the products with delivery. And we will also do TPI (Third party inspection) on the products if necessary.
