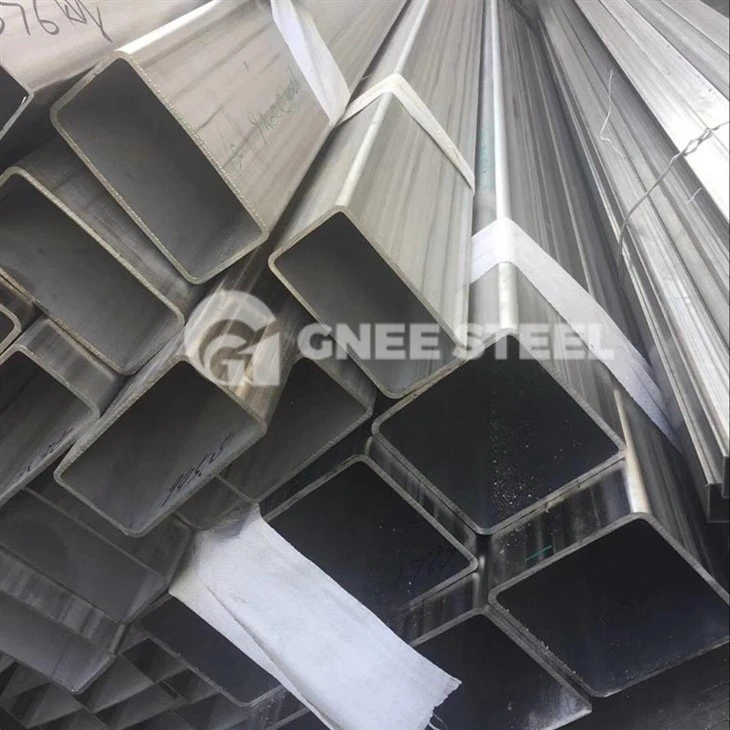

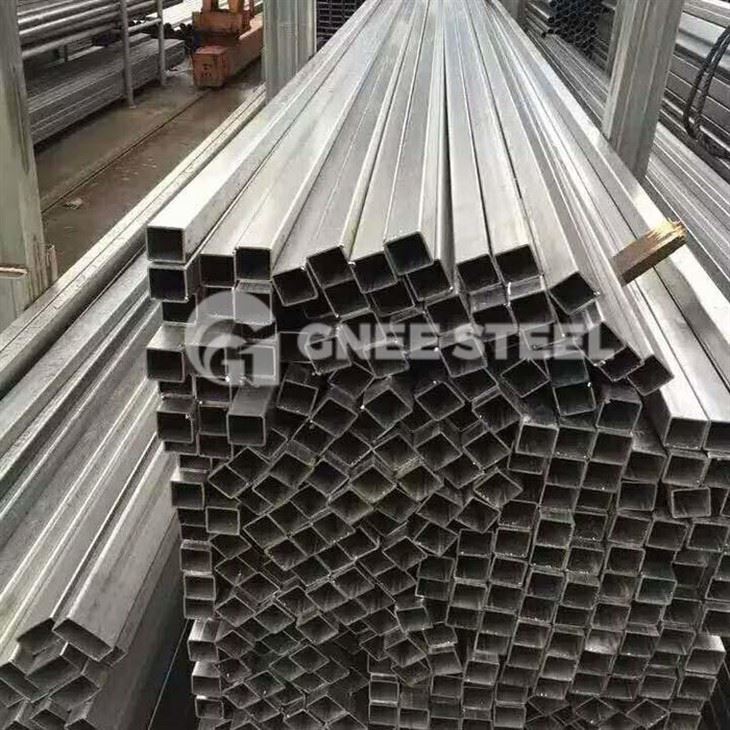

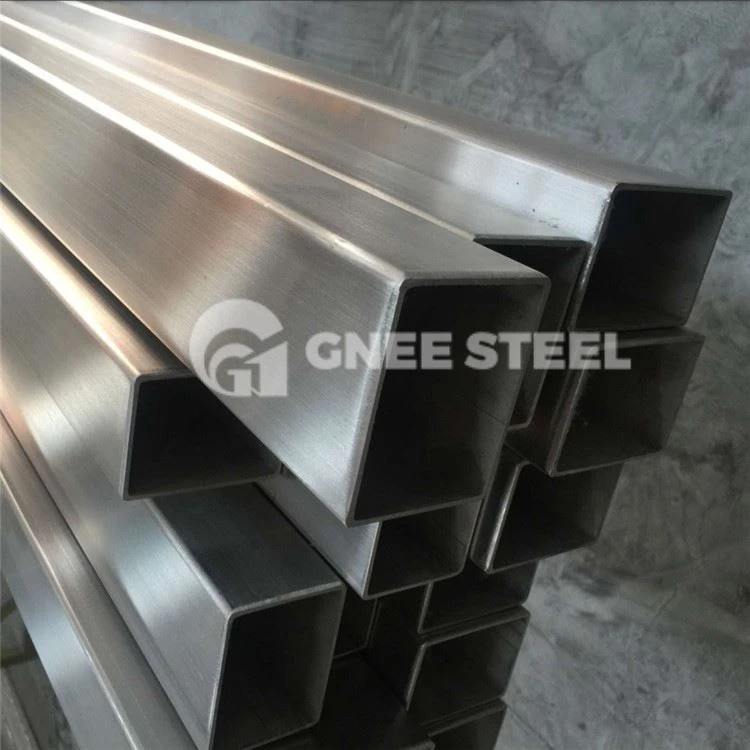

A632 TP348 Welded Pipe
TP348 is a stainless steel suitable for the nuclear power industry and has certain restrictions on the combined amount of tantalum and cobalt.
Gnee Steel (Tianjin) Co., Ltd. is one of the most reliable manufacturers and suppliers of a632 tp348 welded pipe in China, also supports customized service with low price. Welcome to wholesale discount a632 tp348 welded pipe for sale here from our factory. Contact us for free sample.
Products Description
Specification A632 covers grades of stainless steel pipe intended for general corrosion-resistant, low-temperature, or high-temperature service. A632 is a general-purpose austenitic stainless steel small-diameter seamless and welded steel pipe. These steel pipes must be cold-processed products and must be made using seamless or welding processes.
| Specifications | ASTM A632/ ASME SA632 |
| Grades | 304,304l,310,316,316l,317,321,347,348 |
| O.D. | 12.7 – 102 MM |
| Wall Thickness | 0.5 – 5 MM |
| Length | Straight Length up to 30 meters |
| Schedule | SCH. 5, 10, 20, 30, 40, 60, 80, 100, 120, 140, 160, XXS. |
| Welding Method | TIG or TIG + Plasma or Laser |
| Finish | 2B MIll Finish, No.4 finish, BA Finish, 400 Grit Finish, 550 Grit Finish, 600 Grit Finish |
| Types | Round, Square, Rectangle, Coil, "U" Shape, Hydraulic & Honed Tubes |
Chemical Composition of TP348 Stainless Steel Welded Pipe
| Element | Content (%) |
|---|---|
| Iron, Fe | 66 |
| Chromium, Cr | 19 |
| Nickel, Ni | 11 |
| Manganese, Mn | 2.0 |
| Silicon, Si | 1.0 |
| Nb + Ta | 0.8 |
| Cobalt, Co | 0.2 |
| Tantalum, Ta | 0.1 |
| Carbon, C | 0.080 |
| Phosphorous, P | 0.045 |
| Sulfur, S | 0.030 |
Mechanical Properties of A632 TP348 Welded Steel Pipe
| Properties | Metric | Imperial |
|---|---|---|
| Tensile strength | 655 MPa | 95000 psi |
| Yield strength (@ strain 0.200%) | 275 MPa | 39900 psi |
| Izod impact | 120 - 160 J | 88.5 - 118 ft-lb |
| Charpy impact | 160 J | 118 ft-lb |
| Shear modulus (typical for steel) | 77.0 GPa | 11200 ksi |
| Elastic modulus | 190-210 GPa | 27557-30458 ksi |
| Poisson's ratio | 0.27-0.30 | 0.27-0.30 |
| Elongation at break (in 50 mm) | 45% | 45% |
| Hardness, Brinell (converted from Rockwell B hardness) | 147 | 147 |
| Hardness, Knoop (converted from Rockwell B hardness) | 164 | 164 |
| Hardness, Rockwell B | 85 | 85 |
| Hardness, Vickers (converted from Rockwell B hardness) | 169 | 169 |
TP348 Welded Stainless Steel Pipe
