What is a 90 degree elbow used for
Jul 03, 2025
As a key turning element of the pipeline system, the core value of the 90° elbow lies in optimizing the spatial layout and controlling the flow direction of the fluid through the precise right-angle turning ability. The following is a detailed explanation of its core uses and technical points by application scenario:
Optimization of the spatial layout of the pipeline system
- Building water supply and drainage system
Spatial restricted area turning: In compact areas such as bathroom wall drains and kitchen floor drains, the 90° elbow realizes the right-angle turning of the pipeline against the wall, avoiding conflicts with the building structure (beams and columns), greatly saving installation space.
Key node of riser transfer: Connect the vertical drainage riser with the horizontal branch pipe to ensure directional discharge of sewage (for example, at least one 90° elbow is required for each drainage branch pipe on each floor of a high-rise building).
- Complex wiring of industrial pipelines
Spinning in equipment-intensive areas: In narrow areas such as the vicinity of chemical plant reactors and power plant boiler rooms, short-radius 90° elbows (R=1D) break through space limitations and realize right-angle detours of pipelines.
Terrain adaptability layout: When the oil pipeline passes through the mountains, the combination of 90° elbows can adapt to the steep terrain and reduce the amount of excavation.
Fluid control and medium adaptation
1. Industrial harsh medium transportation
Corrosion-resistant scenarios :

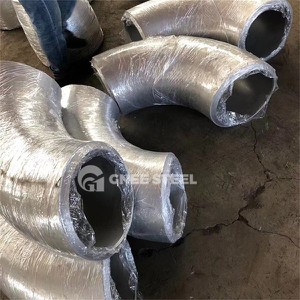

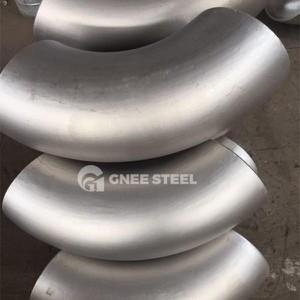

The 316L stainless steel 90° elbow in the chemical pipeline can withstand Cl⁻>5000mg/L environment and is used for hydrochloric acid and chlorine-alkali pipelines.
High-pressure and high-temperature system :
The main steam pipe of the power plant adopts alloy steel forged 90° elbows with a pressure resistance of ≥16MPa and a temperature resistance of 550℃ ;
The L360 steel elbows for oil and gas pipelines resist high-pressure impact and reduce the risk of pipe burst .
2. Special function design
Vibration isolation and noise reduction : The rubber 90° elbow (including fabric reinforcement layer) absorbs the vibration energy of the pump valve, and the building water supply pump room has a measured noise reduction of 15dB .
Anti-leakage safety design:
Double-layer stainless steel 90° elbow for gas pipeline, with nitrogen filling on the outer layer to monitor leakage;
Sanitary mirror-polished elbow (Ra≤0.8μm) to prevent microbial growth (sterile pipeline for food and pharmaceuticals).
Safety protection and system maintenance
Electrical safety protection
Equipotential connection: The PPR equipotential 90° internal thread elbow in the bathroom is connected to the grounding box to eliminate the risk of leakage during showering (the potential difference approaches 0V).
Enhanced system stability
Displacement compensation: The elastic deformation of the rubber 90° elbow adapts to the thermal expansion and contraction of the pipeline (compensation amount ±15mm) to prevent flange cracking.
Maintenance convenience: The quick-install clamp-type 90° elbow (DN50-DN200) supports quick disassembly, which is convenient for cleaning pipeline sediments.
