BS EN10297-1 Alloy Tube
EN 10297 Part 1 specifies the technical delivery conditions for seamless round tubes of non-alloy and alloy steel for mechanical and general engineering purposes.
Gnee Steel (Tianjin) Co., Ltd. is one of the most reliable manufacturers and suppliers of bs en10297-1 alloy tube in China, also supports customized service with low price. Welcome to wholesale discount bs en10297-1 alloy tube for sale here from our factory. Contact us for free sample.
BS EN10297-1 Seamless Alloy Steel Tube Supplier-GNEE
EN 10297-1 steel pipe is a hot-rolled seamless pipe that is preferred for mechanical application types. The material is a carbon steel that can be used in mechanical and general engineering applications.
Alloy special steel:41Cr4,25CrMo4,30CrMo4,34CrMo4,42CrMo4
OD: 20-660mm WT: 2.3-100mm L: 5.8M, 6M, 11.8M, 12M or any other specified length.
Application: Machining, General engineering, crane arm, etc
Chemical composition (cast analysis) for tubes made from alloy special steels in % by mass a
| Steel grade | C | Si | Mn | P | S | Cr | Mo | Ni | ||||||
| Steel name | Steel number | min. | max. | max. | min. | max. | max. | max. | min. | max. | min. | max. | min. | max. |
| 41Cr4 | 1.7035 | 0,38 | 0,45 | 0,40 | 0,60 | 0,90 | 0,035 | 0,035 | 0,90 | 1,20 | - | - | - | - |
| 25CrMo4 | 1.7218 | 0,22 | 0,29 | 0,40 | 0,60 | 0,90 | 0,035 | 0,035 | 0,90 | 1,20 | 0,15 | 0,30 | - | - |
| 30CrMo4 | 1.7216 | 0,27 | 0,34 | 0,35 | 0,35 | 0,60 | 0,035 | 0,035 | 0,80 | 1,15 | 0,15 | 0,30 | - | - |
| 34CrMo4 | 1.7220 | 0,30 | 0,37 | 0,40 | 0,60 | 0,90 | 0,035 | 0,035 | 0,90 | 1,20 | 0,15 | 0,30 | - | - |
| 42CrMo4 | 1.7225 | 0,38 | 0,45 | 0,40 | 0,60 | 0,90 | 0,035 | 0,035 | 0,90 | 1,20 | 0,15 | 0,30 | - | - |
| a See also 7.1. | ||||||||||||||
| b<0,25% Cu. | ||||||||||||||
Mechanical properties for tubes made of steels in accordance with Table 6 in delivery condition +QT:
| Steel grade | Minimum tensile properties | |||||||||||||||||
| Steel name | Steel number | Yield strength (ReH) MPa | Tensile strength ( Rm) MPa | Elongation A% | ||||||||||||||
| For T in mm | For T in mm | For T in mm | ||||||||||||||||
| T≤8 | 8＜T≤20 | 20＜T≤50 | 50＜T≤80 | T≤8 | 8＜T≤20 | 20＜T≤50 | 50＜T≤80 | T≤8 | 8＜T≤20 | 20＜T≤50 | 50＜T≤80 | |||||||
| l | t | l | t | l | t | l | t | |||||||||||
| 41Cr4 | 1.7035 | 800 | 660 | 560 | - | 1000 | 900 | 800 | - | 11 | 9 | 12 | 10 | 14 | 12 | - | - | |
| 25CrMo4 | 1.7218 | 700 | 600 | 450 | 400 | 900 | 800 | 700 | 650 | 12 | 10 | 14 | 12 | 15 | 13 | 16 | 14 | |
| 30CrMo4 | 1.7216 | 750 | 630 | 520 | 480 | 950 | 850 | 750 | 700 | 12 | 10 | 13 | 11 | 14 | 12 | 15 | 13 | |
| 34CrMo4 | 1.7220 | 800 | 650 | 550 | 500 | 1000 | 900 | 800 | 750 | 11 | 9 | 12 | 10 | 14 | 12 | 15 | 13 | |
| 42CrMo4 | 1.7225 | 900 | 750 | 650 | 550 | 1100 | 1000 | 900 | 800 | 10 | 8 | 11 | 9 | 12 | 10 | 13 | 11 | |
| NOTE l = longitudinal, t = transverse. | ||||||||||||||||||
Dimensional Tolerances Of EN 10297-1 Seamless Circular Steel Tubes
OD/Wall tolerance
| Execution | Size Range | OD Tolerance | Wall tolerance |
|---|---|---|---|
| Hot-rolled Tube | OD – 80 mmOD > 80 mmWall < 12 mmWall - 12 mm | ± 0.4 mm± 0.5 % of OD | ± 0.7 mm± (5 % x wallthickness + 0.1 mm |
| Hot-rolled peeled tube | All sizesWall < 12 mmWall - 12 mm | + 0.25/- 0 mm | ± 0.8 mm± (5 % x wall thickness+ 0.2 mm) |
| Cold Worked tubecold-rolled or cold-drawn | OD < 40 mmOD 40 - 80 mmOD > 80 Wall Thickness< 6 mm Wall Thickness6 - 8 mm Wall Thickness > 8 | + 0.30/- 0 mm*+ 0.35/- 0 mm*+ 0.40/- 0 mm* | ± 0.30 mm± 0.35 mm± 0.40 mm |

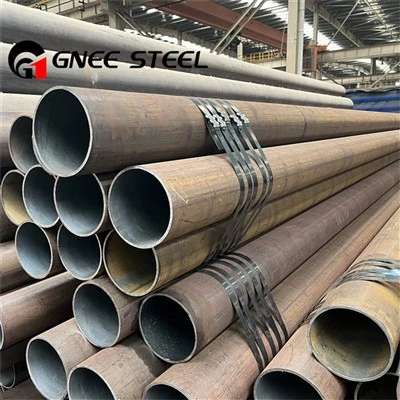

BS EN10297-1 Alloy Steel Tube
